Product Details:
After a long CAD development based on the 3D scan of the OEM engine cradle, tested with the CAD FEA method (finite element method) and on the road, you can now buy a cradle for the front of your Audi TT TS TTRs 8J cars. List of cars below.
We use the same T45 tubing as in WRC cars, our wishbones provide increased stiffness and extra adjustability. All factory parts are bolted to this unit, no other modifications are necessary.
"T45" tubing is a very unique seamless carbon base steel tubing that has been used in many applications across different industries. It is stronger than the Co-Mo 4130 tube also used in motorsport.
It is widely used in the aerospace industry and in equipment such as pilot seats and crew seats due to the materials ability to withstand high G-forces without cracking or splitting.
This material is carbon and manganese based and conforms to aerospace specifications as defined by British Standards.
This cradle is compatible for LHD (left-hand drive) and RHD (right-hand drive) vehicles.
Properties
Tensile: 700 - 900MPa,
0.2% Yield 620MPa minimum
Hardness test: 201min - 262 max HB or 210min - 275max HV
Advantages :
- - Can be used with your OEM wishbones or lowered and adjustable tubular front wishbones
- - Cradle weight 6kg, this is a weight saving of 4kg compared to the OEM cradle which weighs 10kg
- - A single and unique mounting position
- - Increased chassis stiffness to improve driving performance
- - No additional bottom bar needed (weight saving)
Characteristics :
- - Better accessibility under the car allowing the triangle to be changed without any other dismantling constraints
- - T45 tubes (BS4T45 to BS4T100) imported from UK and S355 metal sheets
- - All components TIG welded
- - Delivered painted (Epoxy powder coating) black
- - Can be used with OEM wishbones
- - Plug&Play assembly
- - Includes the two supports for the leveling correctors (Xenon headlight)
- - Can be used with OEM wishbones
What's included:

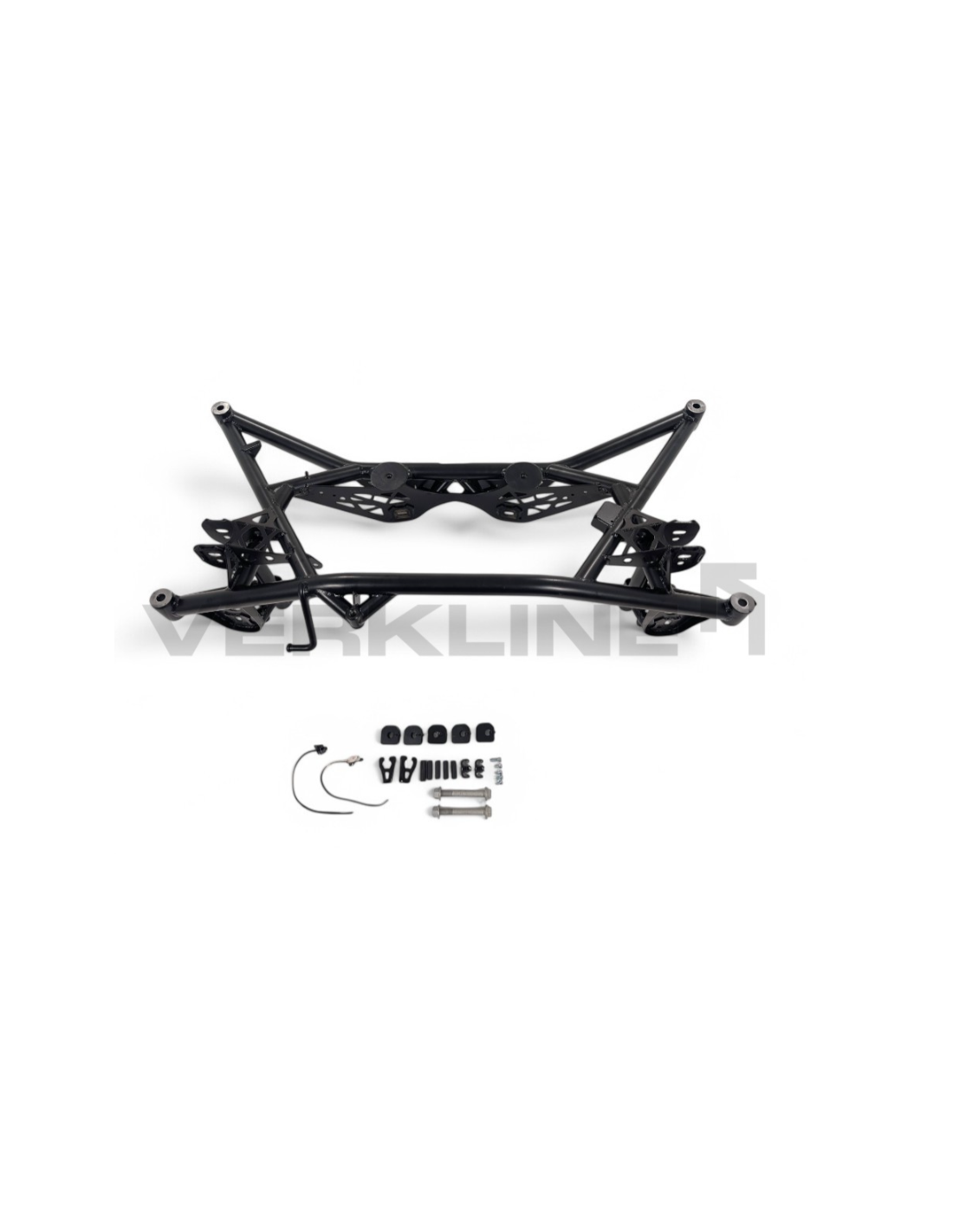

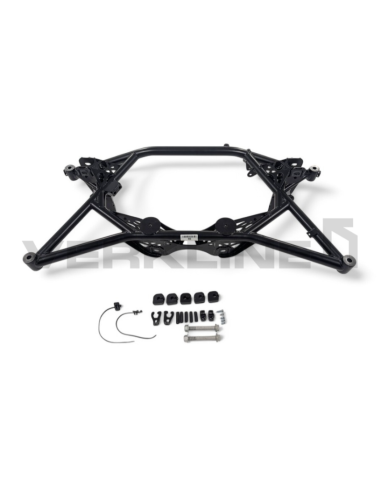

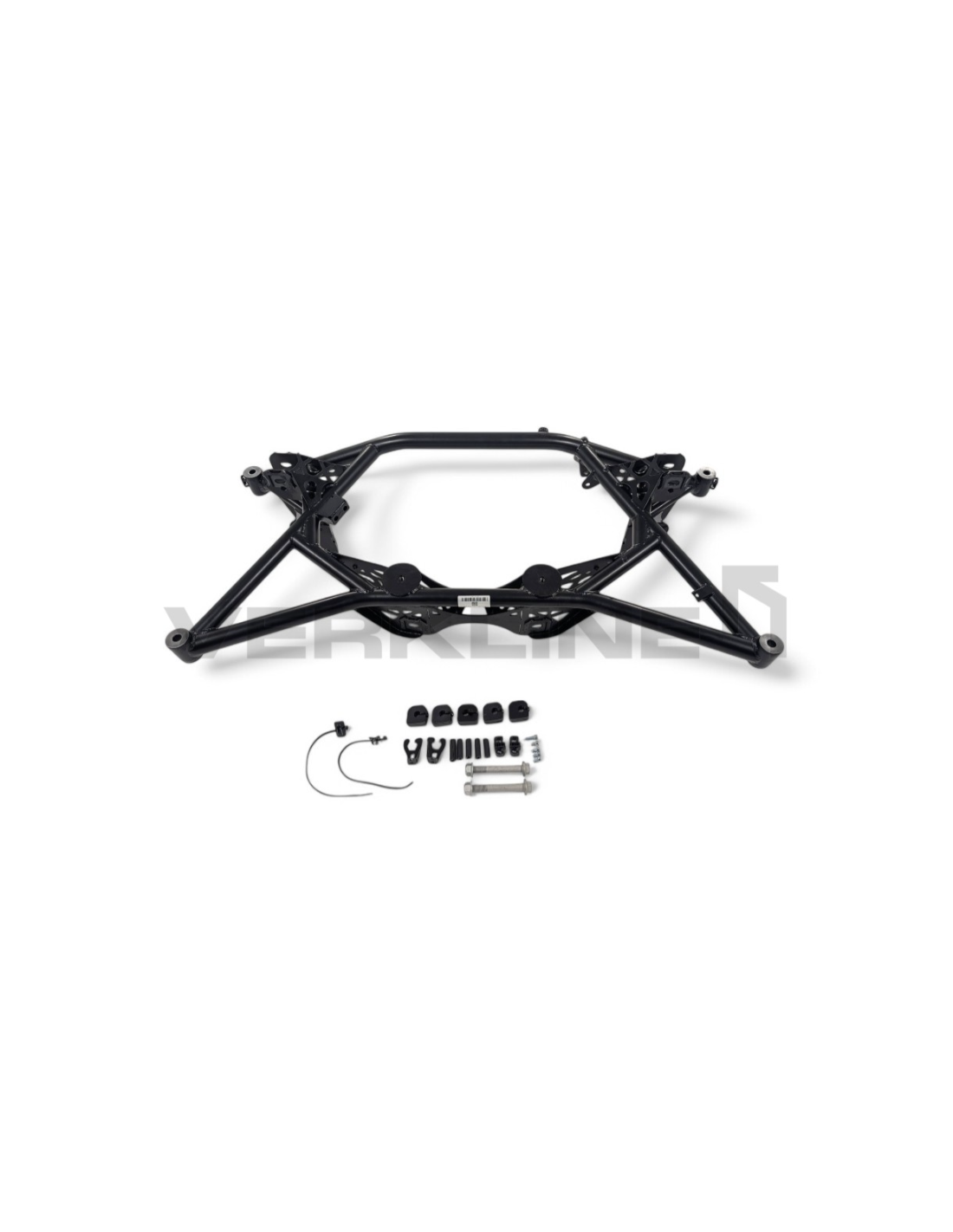

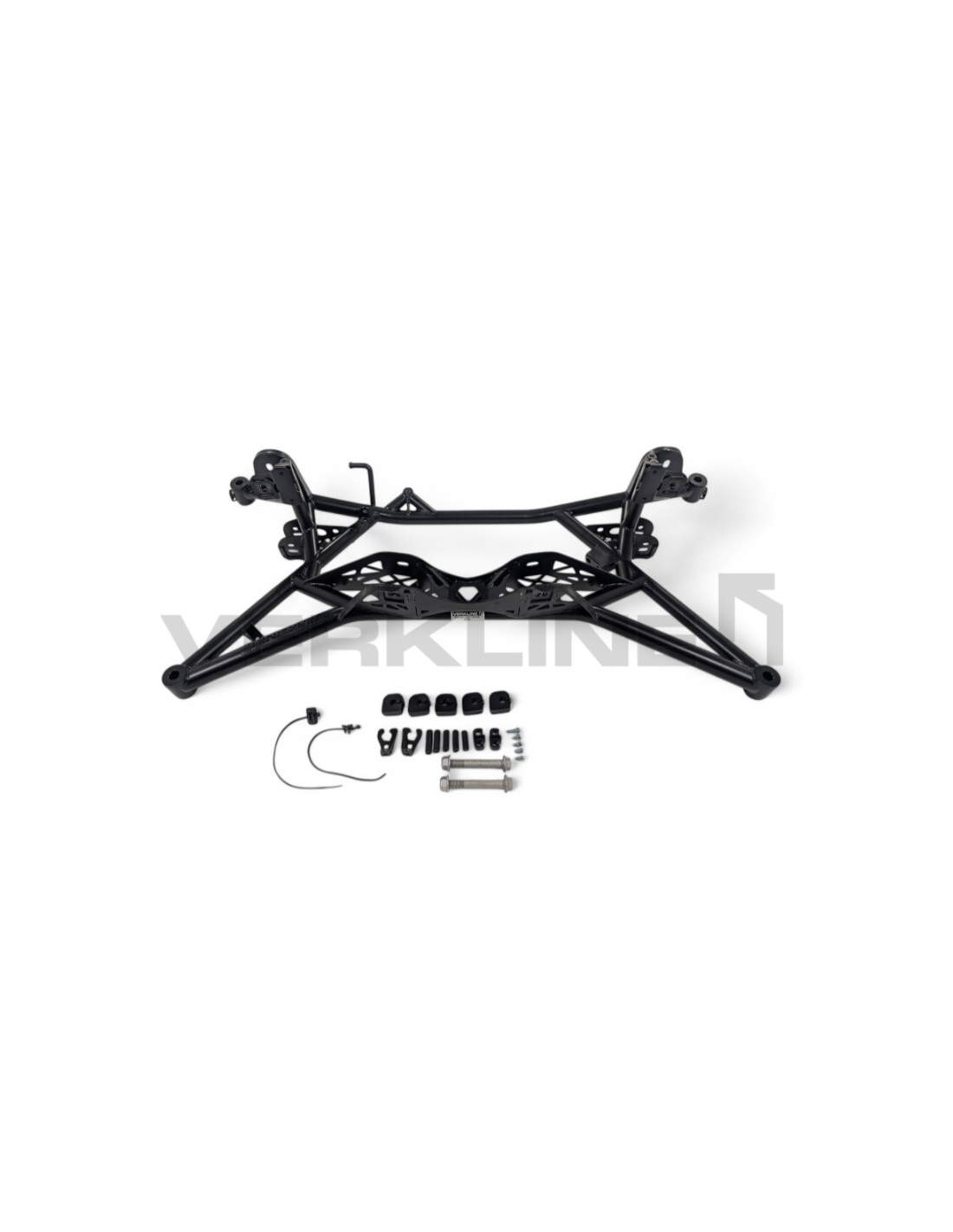

- Rear cradle black epoxy paint from VERKLINE
- – set of 3mm metal adjustable triangle position shims for positioning -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5 mm.
- – installation instructions
ATTENTION: Does not work with Audi RS3 8P and VW Golf R32. The battery is located under the car behind the rear subframe. It is possible to use our subframe but the battery compartment has to be moved.
Compatible with :
- Audi A3 S3 8P/8V and 8V2 with Haldex
- Audi RS3 8V 8FV from 2013
- Audi TT TTS 8J and 8S from 2006 with Haldex
- Audi TTRS 8J and 8S from 2009
- Audi Q2 from 2017 with haldex
- Audi Q3 and RSQ3 F3 from 2018
- SEAT Leon Mk3 5F from 2006 to 2013 with Haldex
- VW Golf 5 6 7 8 Mk6 Mk7 Mk8 from 2005 with Haldex 4WD
This Kit Replaces:
- – 5Q0505235E
- – 5Q0505235J
Note: Sold for off-road, race track and racing applications only. Installing these type of parts will cause noise and other vibrations in your vehicle. We strongly advise that you have the crib fitted at a qualified and experienced workshop who will know what to do.
This piece is custom-made to order so when you order this product and we are launching production there will NEVER be taken exchanged refunded, thank you to take NOTE
STR Performance is an official distributor of VERKLINE products, if you are looking for a part from VERKLINE that we do not have on our site, do not hesitate to contact us via our Contact page, so that we can give you a price and a deadline. .
