VERKLINE front and rear replica suspension triangle kit for Audi Sport Quattro S1 B2 B3 B4 S2 Rs2 Ur-Quattro
VERKLINE front and rear replica suspension triangle kit for Audi Sport Quattro S1 B2 B3 B4 S2 Rs2 Ur-Quattro
VERKLINE front and rear replica suspension triangle kit for Audi Sport Quattro S1 B2 B3 B4 S2 Rs2 Ur-Quattro
VERKLINE front and rear replica suspension triangle kit for Audi Sport Quattro S1 B2 B3 B4 S2 Rs2 Ur-Quattro
VERKLINE front and rear replica suspension triangle kit for Audi Sport Quattro S1 B2 B3 B4 S2 Rs2 Ur-Quattro
VERKLINE front and rear replica suspension triangle kit for Audi Sport Quattro S1 B2 B3 B4 S2 Rs2 Ur-Quattro

VERKLINE front and rear replica suspension triangle kit for Audi Sport Quattro S1 B2 B3 B4 S2 Rs2 Ur-Quattro

vgm07708
On order, contact us.
€1,639.95
Tax included

Here is our complete kit of rear and front replica reinforced suspension triangles from VERKLINE for Audi Sport Quattro S1 B2 B3 B4 S2 Rs2 Ur-Quattro

 Customer ratings and reviews
Nobody has posted a review yet
in this language


STR Performance VERKLINE distributor lightweight cradle high performance parts


Product details:

Our pair of 2 front replica reinforced suspension triangles from VERKLINE for Audi Sport Quattro S1 is installed in place of the old triangles without modifications.

For quattro cars which need unchanged geometry in all road, gravel and track conditions, as the original wishbones are pressed and steel and have a tendency to bend if used in Difficult conditions. The replica wishbones that we offer will allow you to adjust the camber fairly wide for use on the track. It offers up to 2mm more camber adjustment.

In addition, Audi Sport's replica wishbone suspension kit moves the wheel towards the front of the car, resulting in better handling of the car. The aluminum ball joint support is a perfect replica and it is perfectly identical to the original. They are suitable for rally stages and for track use when the stock wishbone gives up.

They provide the greater strength needed to withstand the much greater stresses and substantial geometry changes also become essential for efficient use of your quattro vehicle. Tested on our racing and rally cars.

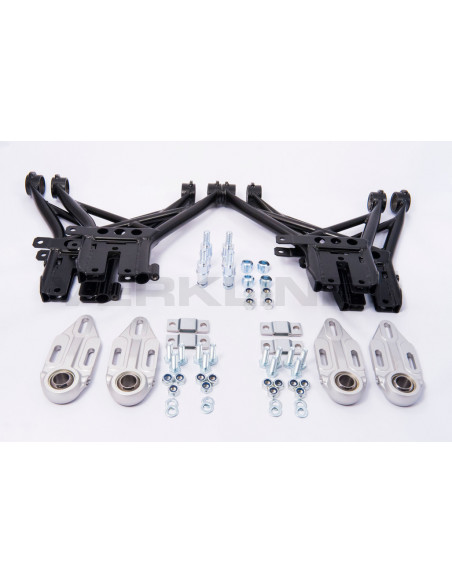

This Kit includes:

  • 4 triangles for front and rear axle in E355 + N / steel St 52.4 ( please specify if your pivots are type B2 or split type B3 / B4 - see photo 3 and 4 )
  • 4 aluminum ball joint supports milled on a CNC machine and black anodized
  • 4 Fluro sport regreasable bearings (22 mm hole)
  • 4 steel pins to connect to OEM spacers ( front - please indicate 17mm, 18mm or 19mm pin )
  • 8 galvanized steel locking plates to secure the aluminum ball joint brackets
  • Kit screws required for mounting the ball joint brackets and steel pins

Characteristics :

  • - Can be used with the standard front subframe
  • - Designed to work with OEM uprights
  • - Allows massive camber adjustment (up to 25mm longer than OEM) and wider track
  • - Gives an additional roulette wheel. Audi B4 OEM caster is 2 and with our wishbone it is 2.65
  • - Works well with Audi Sport blade type stabilizer bars
  • - Works with Audi Sport uprights (22mm bolt)
  • - Prepared to work with an additional swing arm (front)
  • - Possible to use with "turn stop" on Audi Sport uprights
  • - On the contact area between the aluminum ball joint support and the inside of the triangle, the area is knurled for better grip of the support
  • - To be used with 37 mm diameter rings for mounting the triangle on the subframe

Equipment :

  • - Audi RS2
  • - Audi B2 Coupé, Sedan
  • - Audi B3 / B4, Coupé, Sedan, station wagon

Bender and milling machine for processing pipes. The pipes are milled, the metal plate is stamped, the pipe ends are pressed and flattened for fixing the rings, the plugs and elbows are laser cut, the rings are turned and ground, the rocker arm is welded into the tool welding, dimensional tolerances: + 0.03 mm, concentricity tolerance 0.01 mm, tolerances are checked on a separate measuring device.

Knurling is carried out on a press by inserting the mass of material - 80 metric tons. MIG welding is used to connect all pipes together to replicate the Audi Sport manufacturing process. The triangle is made of reinforced steel and painted with black powder.

Note: Minor tools are required to install the rear wishbone bolts. You must have a burner to heat the rear pillars so that the bolt is pushed in. Instructions are provided to the customer on how to install the kit. The front wishbones considerably increase the caster angle.

Note: Sold for off-road, race track and racing applications only. We strongly advise you to assemble the cradle in a qualified and experienced workshop who will know what to do.

This piece is custom-made to order so when you order this product and we are launching production there will NEVER be taken exchanged refunded, thank you to take NOTE

STR Performance is official distributor of VERKLINE products, if you are looking for a part from VERKLINE that we do not have on our site, do not hesitate to contact us via our Contact page, so that we can give you a price and a deadline .

The cars have been passionate about us for more than 10 years and more particularly the masterpieces Audi Quattro.

During this period, we built the legendary cars for us and ourselves. Passionate about our work and obsessed with the concern of detail, we started producing pieces for us and for our friends a few years ago.

It is only by making car parts ourselves that we can meet the highest standards! He has evolved over the years and has become our main work at VERKLINE.com formerly AKmotorsport.net

We design and test the products in our warehouse. When ready, they are sent to our manufacturing department, use machines, the parts are made in the desired tolerances. After that, we perform the final assembly and quality control.

All parts are designed in 3D CAD and produced on our machines to ensure superior quality and repeatability.
